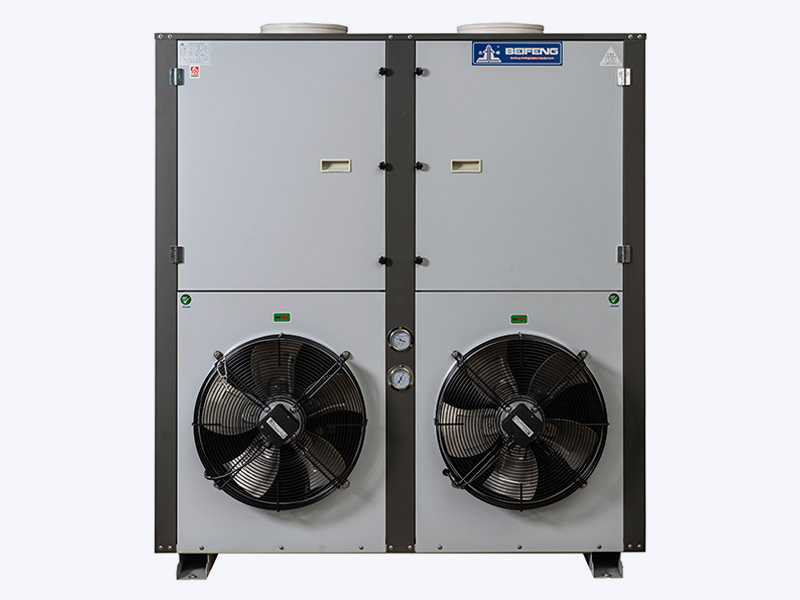

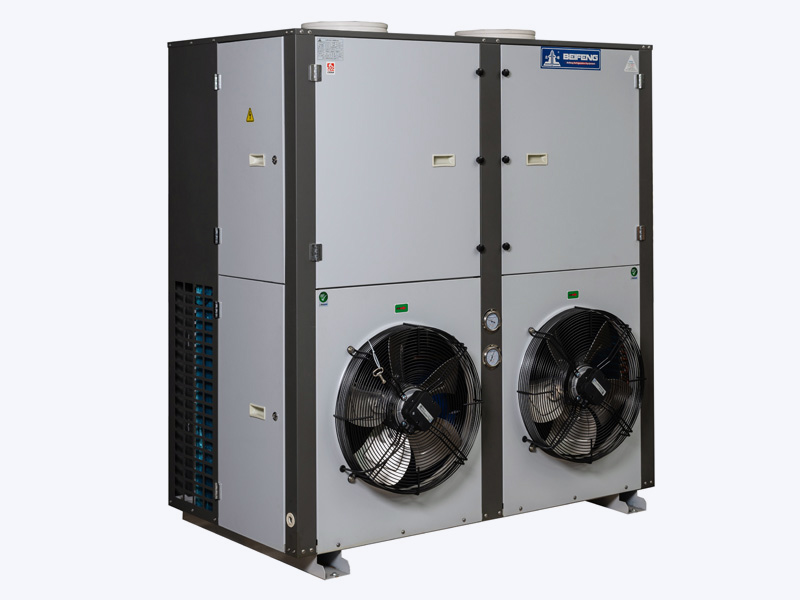

产品特点
●选用高效低噪音外转子电机
●内螺纹铜管的选用和过冷管路的设计，提高了机组的制冷量
●全智能控制系统，可远程无线控制，结合公司独创多重除霜技术，机组运行更稳定。
●采用丹佛斯制冷专用压缩机，高温环境下制冷更强劲，能效更高
●一体式连接，安装更简单，只需连接进出液管
技术参数
|
型号 项目 |
压缩机 |
风扇尺寸 |
风机电机 |
接管尺寸 |
外形尺寸（mm） |
|||
|
电源 |
最大运行电流 |
Φ×数量 |
电源 |
最大功率W×数量 |
吸气(Φ) |
出液(Φ) |
（长×宽×高） L×W×H |
|
|
BF-CUD0200M(Y) |
380-400V/3ph/50Hz 460V/3ph/60Hz |
4.9(A) |
Φ400×1 |
380V/50Hz |
135×1 |
5/8" |
3/8" |
950×505×816 |
|
BF-CUD0300M(Y) |
380-400V/3ph/50Hz 460V/3ph/60Hz |
6.8(A) |
Φ400×1
|
380V/50Hz |
135×1 |
5/8" |
3/8" |
950×505×816 |
|
BF-CUD0400M(Y) |
380-400V/3ph/50Hz 460V/3ph/60Hz |
9.88(A) |
Φ450×1 |
380V/50Hz |
200×1 |
3/4" |
3/8" |
950×505×816 |
|
BF-CUD0500M(Y) |
380-400V/3ph/50Hz 460V/3ph/60Hz |
11.7(A) |
Φ400×2 |
380V/50Hz |
135×2 |
3/4" |
1/2" |
950×505×1216 |
|
BF-CUD0600M(Y) |
380-400V/3ph/50Hz 460V/3ph/60Hz |
14.1(A) |
Φ450×2 |
380V/50Hz |
200×2 |
3/4" |
1/2" |
950×505×1216 |
|
BF-CUD0800M(Y) |
380-400V/3ph/50Hz 460V/3ph/60Hz |
15.3(A) |
Φ550×1 |
380V/50Hz |
295×1 |
3/4" |
1/2" |
820×750×760 |
|
BF-CUD0900M(Y) |
380-400V/3ph/50Hz 460V/3ph/60Hz |
18.1(A) |
Φ550×1
|
380V/50Hz |
295×1 |
1-1/8" |
5/8" |
1360×750×860 |
|
BF-CUD0700M(Y) |
380-400V/3ph/50Hz 460V/3ph/60Hz |
20.3(A) |
Φ550×2 |
380V/50Hz |
295×2 |
1-1/8" |
5/8" |
1360×750×860 |
|
BF-CUDIOOOM(Y) |
380-400V/3ph/50Hz 460V/3ph/60Hz |
23.9(A) |
Φ550×2 |
380V/50Hz |
295×2 |
1-1/8" |
5/8" |
1360×750×860 |
|
BF-CUD1200M(Y) |
380-400V/3ph/50Hz 460V/3ph/60Hz |
28.3(A) |
Φ550×2 |
380V/50Hz |
295×2 |
1-1/8" |
5/8" |
1360×750×910 |
|
BF-CUD1500M(Y) |
380-400V/3ph/50Hz 460V/3ph/60Hz |
35(A) |
Φ550×2 |
380V/50Hz |
295×2 |
1-3/8" |
5/8" |
1460×800×960 |
BF-CUD一体式户外型冷凝机组制冷量
R22/R404A
|
机组型号 |
名义功率 (HP) |
环境温度(℃) |
制冷量(VV) |
||||||||
|
蒸发温度(℃) |
|||||||||||
|
-25 |
-20 |
-15 |
-10 |
-5 |
0 |
5 |
7.2 |
10 |
|||
|
BF-CUD0200M MLM015T4 |
2 |
32 |
|
|
2810 |
3460 |
4080 |
4750 |
5470 |
5820 |
6280 |
|
38 |
|
|
|
3250 |
3870 |
4450 |
5180 |
5520 |
5950 |
||
|
43 |
|
|
|
|
3670 |
4460 |
4890 |
5220 |
5620 |
||
|
BF-CUD0200MY MLZ015T4 |
2 |
32 |
1920 |
2380 |
2900 |
3580 |
4220 |
4900 |
5800 |
6020 |
6490 |
|
38 |
1530 |
2050 |
2650 |
3300 |
3930 |
4519 |
5260 |
5600 |
6040 |
||
|
43 |
|
1770 |
2230 |
2730 |
3560 |
4030 |
4750 |
5060 |
5460 |
||
|
BF-CUD0300M MLM021T4 |
3 |
32 |
|
|
4100 |
4880 |
5760 |
6730 |
7790 |
8300 |
8950 |
|
38 |
|
|
|
4510 |
5450 |
6390 |
7400 |
7880 |
8530 |
||
|
43 |
|
|
|
|
5150 |
6040 |
7020 |
7460 |
8070 |
||
|
BF-CUD0300MY MLZ021T4 |
3 |
32 |
3050 |
3630 |
4450 |
5240 |
6150 |
7160 |
8250 |
8780 |
9450 |
|
38 |
2710 |
3300 |
4000 |
4830 |
5630 |
6530 |
7610 |
8090 |
8700 |
||
|
43 |
|
2760 |
3530 |
4340 |
5150 |
5920 |
6870 |
7290 |
7840 |
||
|
BF-CUD0400M MLM030T4 |
4 |
32 |
|
|
5880 |
7140 |
8510 |
10050 |
11610 |
12330 |
13250 |
|
38 |
|
|
|
6720 |
8060 |
9500 |
11040 |
11740 |
12640 |
||
|
43 |
|
|
|
|
7600 |
8960 |
10460 |
11160 |
12040 |
||
|
BF-CUD0400MY MLZ030T4 |
4 |
32 |
4460 |
5330 |
6090 |
7390 |
8810 |
10400 |
12020 |
12760 |
13710 |
|
38 |
3840 |
4730 |
5720 |
6820 |
8180 |
9440 |
10900 |
11920 |
12830 |
||
|
43 |
|
4390 |
5290 |
6190 |
7370 |
8590 |
10050 |
10820 |
11680 |
||
|
BF-CUD0500M MLM038T4 |
5 |
32 |
|
|
6610 |
8200 |
9990 |
11880 |
13680 |
14490 |
15530 |
|
38 |
|
|
|
7580 |
9380 |
11080 |
13050 |
13600 |
14580 |
||
|
43 |
|
|
|
|
8870 |
10390 |
12330 |
13040 |
13940 |
||
|
BF-CUD0500MY MLZ038T4 |
5 |
32 |
5270 |
6260 |
7350 |
8990 |
10650 |
12290 |
14150 |
15000 |
16070 |
|
38 |
4670 |
5660 |
6810 |
8200 |
9730 |
11450 |
13250 |
14020 |
15000 |
||
|
43 |
|
5170 |
6260 |
7550 |
8800 |
10370 |
12060 |
12740 |
13620 |
||
|
BF-CUD0600M MLM045T4 |
5 |
32 |
|
|
7930 |
9760 |
11780 |
14000 |
16360 |
17410 |
18730 |
|
38 |
|
|
|
9120 |
11110 |
13170 |
15450 |
16470 |
17760 |
||
|
43 |
|
|
|
|
10550 |
12320 |
14640 |
15530 |
16780 |
||
|
BF-CUD0600MY MLZ045T4 |
5 |
32 |
6240 |
7400 |
8950 |
10680 |
12590 |
14390 |
17030 |
18110 |
19490 |
|
38 |
5750 |
6900 |
8210 |
9750 |
11380 |
13360 |
15680 |
16710 |
18020 |
||
|
43 |
|
|
|
|
10340 |
12050 |
14200 |
15160 |
16380 |
||
注：制冷量基于吸气温度20℃，有过冷。
BF-CUD一体式户外型冷凝机组制冷量
R22/R404A
|
机组型号 |
名义功率(HP) |
环境温度(℃) |
制冷量(W) |
||||||||
|
蒸发温度(℃) |
|||||||||||
|
-25 |
-20 |
-15 |
-10 |
-5 |
0 |
5 |
7.2 |
10 |
|||
|
BF-CUD0700M MLM048T4 |
7 |
32 |
|
|
9364 |
11246 |
13169 |
15352 |
17864 |
18875 |
20416 |
|
38 |
|
|
|
10603 |
12693 |
14644 |
16734 |
17774 |
19426 |
||
|
43 |
|
|
|
|
12017 |
14036 |
16103 |
17073 |
18534 |
||
|
BF-CUD0700MY MLZ048T4 |
7 |
32 |
6885 |
8267 |
9691 |
11638 |
13836 |
16200 |
18800 |
20053 |
21647 |
|
38 |
6537 |
7930 |
9343 |
10761 |
12883 |
15066 |
17492 |
18650 |
20123 |
||
|
43 |
|
7340 |
8513 |
10042 |
11656 |
13615 |
15814 |
16851 |
18172 |
||
|
BF-CUD0800M MLM058T4 |
8 |
32 |
|
|
10396 |
12568 |
14894 |
17535 |
20392 |
21551 |
23511 |
|
38 |
|
|
|
11744 |
14094 |
16564 |
18613 |
20308 |
22286 |
||
|
43 |
|
|
|
|
13195 |
15504 |
18433 |
19565 |
21360 |
||
|
BF-CUD0800MY MLZ058T4 |
8 |
32 |
7961 |
9287 |
10759 |
13518 |
15926 |
18659 |
21520 |
22927 |
24850 |
|
38 |
7546 |
8772 |
10318 |
12430 |
14612 |
17015 |
19906 |
21323 |
23127 |
||
|
43 |
|
8257 |
9691 |
11309 |
13105 |
15039 |
17976 |
19268 |
20912 |
||
|
BF-CUD0900M MLM066T4 |
9 |
32 |
|
|
12078 |
14710 |
17525 |
20742 |
24110 |
25685 |
27593 |
|
38 |
|
|
|
13915 |
16598 |
19692 |
22950 |
24382 |
26232 |
||
|
43 |
|
|
|
|
15471 |
18642 |
21590 |
23077 |
24871 |
||
|
BF-CUD0900MY MLZ066T4 |
9 |
32 |
8537 |
10832 |
12611 |
15440 |
18357 |
21790 |
25177 |
26709 |
28684 |
|
38 |
8135 |
9628 |
11626 |
14128 |
16853 |
19994 |
23201 |
24656 |
26636 |
||
|
43 |
|
9141 |
11048 |
13424 |
15189 |
18067 |
20924 |
22265 |
24103 |
||
|
BF-CUD1000M MLM076T4 |
10 |
32 |
|
|
14386 |
17097 |
20316 |
23788 |
27646 |
29266 |
31584 |
|
38 |
|
|
|
16236 |
19272 |
22526 |
26226 |
27741 |
29724 |
||
|
43 |
|
|
|
|
18427 |
21564 |
24806 |
26415 |
28464 |
||
|
BF-CUD1000MY MLZ076T4 |
10 |
32 |
11064 |
12949 |
15693 |
18705 |
22352 |
25748 |
29641 |
31325 |
33724 |
|
38 |
10364 |
12169 |
14472 |
17281 |
20169 |
23676 |
27434 |
29171 |
31387 |
||
|
43 |
|
11669 |
13563 |
16011 |
18465 |
21402 |
24837 |
26402 |
28386 |
||
|
BF-CUD1200M SM147 |
12 |
32 |
|
|
18225 |
21660 |
25740 |
31270 |
35340 |
37410 |
40373 |
|
38 |
|
|
|
20752 |
24633 |
28793 |
33523 |
35460 |
37995 |
||
|
43 |
|
|
|
17400 |
21190 |
26480 |
30730 |
32660 |
35114 |
||
|
BF-CUD1200MY SM147 |
12 |
32 |
14140 |
16548 |
20055 |
23905 |
28565 |
32905 |
37880 |
40035 |
43100 |
|
38 |
13415 |
15750 |
18495 |
22085 |
25775 |
30257 |
35060 |
37280 |
40110 |
||
|
43 |
|
14915 |
17335 |
20460 |
23595 |
27350 |
31740 |
33740 |
36274 |
||
|
BF-CUD1500M MLM116T4 |
15 |
32 |
|
|
25330 |
30104 |
35775 |
43460 |
49115 |
51990 |
56105 |
|
38 |
|
|
|
28842 |
34235 |
40015 |
46588 |
49280 |
52800 |
||
|
43 |
|
|
|
24183 |
29450 |
36800 |
42705 |
45387 |
48790 |
||
|
BF-CUD1500MY MLZ116T4 |
15 |
32 |
19650 |
23000 |
27875 |
33225 |
39700 |
45730 |
52645 |
55640 |
59900 |
|
38 |
18642 |
21890 |
25705 |
30695 |
35820 |
42048 |
48722 |
51805 |
55738 |
||
|
43 |
|
20730 |
24090 |
28430 |
32786 |
38005 |
44105 |
46885 |
50405 |
||
注：制冷量基于吸气温度20℃，有过冷。
联系我们获取免费报价和更多关于制冷设备的专业知识。您的项目将通过北峰找到合适的解决方案。
